B.O.T.C.K - Bolt On TrackBar Correction kit Gen3 Tundra
Sign up for the email newsletter located at the bottom of any page on this site!! I will send out emails as soon as I know exact date/ time I can get them on the site or as soon as it’s in stock!!
Please allow up to 36-48 hours to fulfill
designed for gen3 Tundra !!!
The new Gen3 Tundra utilizes a 5 link rear suspension. Upper and lower Links and a cross link know as the Pan Hard bar aka trac bar !!
When you lift a solid axle that has a track bar (aka panhard bar )depending on the lift height, the angle of that trac bar becomes so steep, that any natural cycling of the axle will cause a feeling of being unstable. The reason for this is the trac bar being so angled, it forces the axle to swing left and right under the vehicle vs the axle cycling up and down.
To remedy this issue, you want to raise ( or lower frame side ) the pivot point on the axle so that the trac bar is parallel or as close to parallel to the ground / axle. With the trac bar in this configuration , the natural cycling of up and down is returned ( for the most part , once you start to add a lot more travel ie long travel , things start to swing out again. Regardless , this will still be beneficial to having vs not having ).

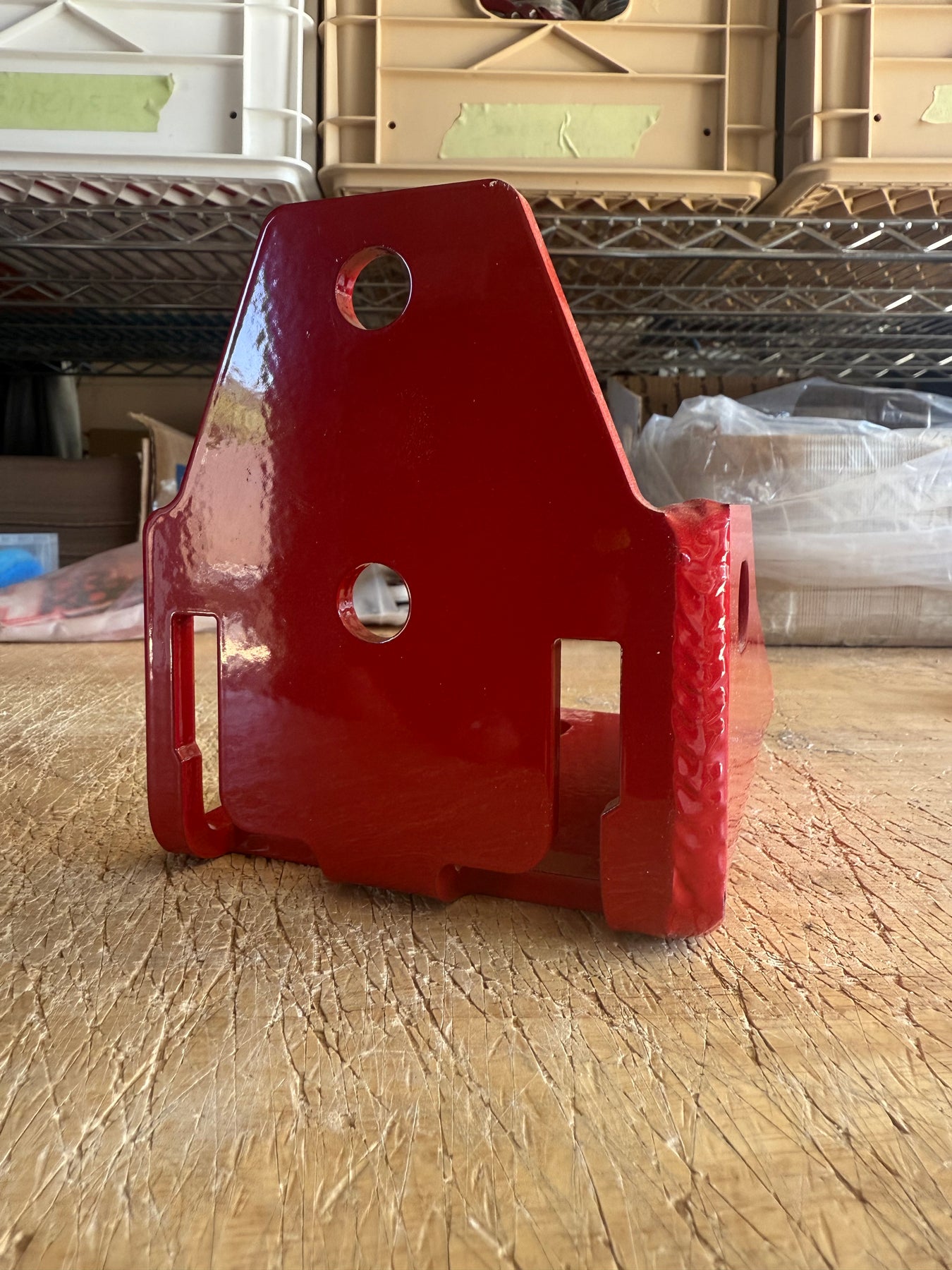

This bolt on trac bar correction kit is designed with strength in mind. The way it is designed, wrapped around , thick wing nut inside the oem bracket , the load is evenly distributed along the whole oem mount and not just the top where the welds are at. On top of that you can easily toss in Some small spot welds if you are that guy that just needs it. This thing is easily installed and or removed for whatever reason. Just being bolted on and torqued down properly, it is stronger then any option on the market ( if you are a competitor of this product , let’s do a cad analysis and see which is stronger I challenge anyone ) !
Gold and King blue option are 2/3 stage powdercoat. You may experience tight mounting holes do to clear coat. Don’t worry. Get a round file and file it down a little or smash it in. I recommend round file 😆!
Whats included :
- main front bracket -back bracket - wing nut - (1x)m14 x 1.5 x 80mm flange head bolt - (1x) m14 x1.5 x 40mm flange head bolt - (1x) m14x35 flange head bolt - (1x) m14x1.5 flange nut
15% restocking fee (no exceptions ) know what you are buying. Must not be installed or damaged !!
“Important shipping / insurance info: if you don’t choose more insurance to cover the cost of whatever you are buying and it is lost or damaged to the point where a claim is being made I will only cover $100 worth as that is the amount they only cover! You have been warned “
ATTENTION Canadian customers !! If you chose UPS as your shipping option , there are times where UPS will impose an import fee! I don’t know how they determine the cost but some customers are stating $100-$120 US dollars which is ridiculous! I have no control over it once it leaves me and enters Canada I think it’s a government fee they are charging UPS in which some one has to pay ! You have been warned There’s always DHL option and USPS
ABSOLUTELY NO RETURNS OR EXCHANGE IF PRODUCT HAS BEEN INSTALL AND OR HAS SCUFF MARKS FROM INSTALL
