B.O.T.C.K - Bolt On TrackBar Correction kit Land Cruiser 200 series/ LX 570

B.O.T.C.K - Bolt On TrackBar Correction kit Land Cruiser 200 series/ LX 570

Name: B.O.T.C.K - Bolt On TrackBar Correction kit Land Cruiser 200 series/ LX 570
Brand: Dr KDSS
Price: 215.0 USD
Availability: InStock

$215.00

Colors available

Matte Black

Matte Black (Shorty)

Silver

Red

Red (Shorty)

King “like” Blue

King "like" blue (Shorty)

Gold blemished ( 3 stage with clear “some are more yellow some are more orangy gold)

Sign up for the email newsletter located at the bottom of any page on this site!! I will send out emails as soon as I know exact date/ time I can get them on the site or as soon as it’s in stock!!

Please allow up to 36-48 hours to fulfill

Non kdss or kdss …. It doesn’t matter!

designed for Land Cruiser !!!

When you lift a solid axle that has a track bar (aka panhard bar )depending on the lift height, the angle of that trac bar becomes so steep, that any natural cycling of the axle will cause a feeling of being unstable. The reason for this is the trac bar being so angled, it forces the axle to swing left and right under the vehicle vs the axle cycling up and down.

To remedy this issue, you want to raise ( or lower frame side ) the pivot point on the axle so that the trac bar is parallel or as close to parallel to the ground / axle. With the trac bar in this configuration , the natural cycling of up and down is returned ( for the most part , once you start to add a lot more travel ie long travel , things start to swing out again. Regardless , this will still be beneficial to having vs not having ).

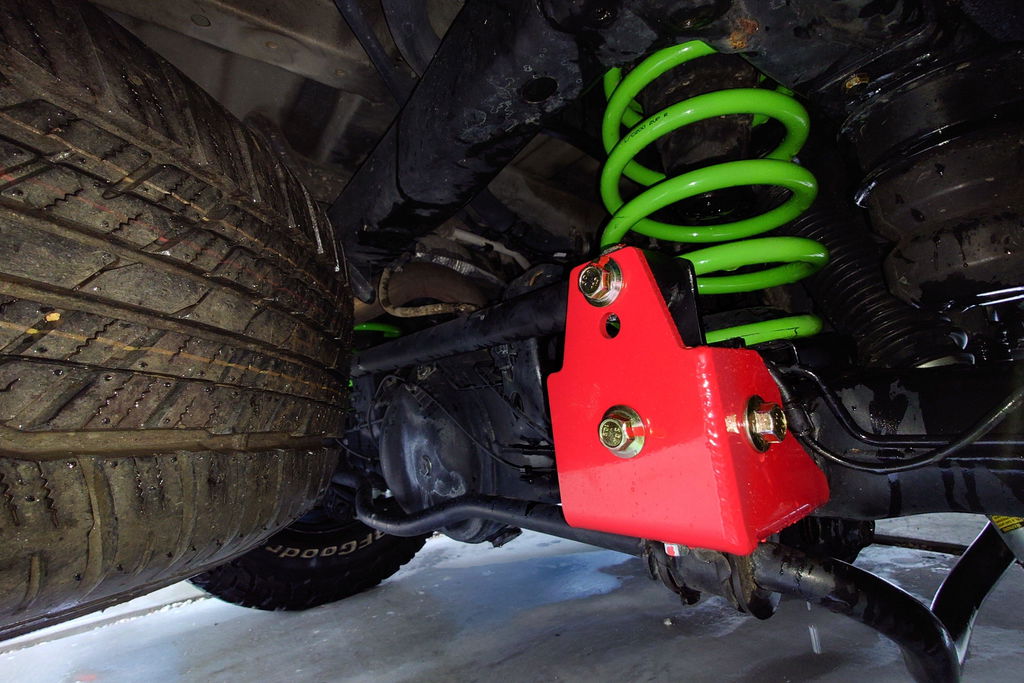

This new bolt on trac bar correction kit is designed with strength in mind. The way it is designed, wrapped around , two m10 bolts on the underside , the load is evenly distributed along the whole oem mount and not just the top where the welds are at. On top of that you can easily toss in Some small spot welds if you are that guy that just needs it. This thing is easily installed and or removed for whatever reason. Just being bolted on and toque down properly, it is stronger then what’s on the market.

This product is really only recommended for lifts of 2”-3”+ of rear lift. In some cases this bracket can contact the crossmember. If it does, rest assure that you won’t break the oem mount or this brackets. I can’t say that for the weld on option in the market as it will transfer the load through oem mount and potentially rip off!!

SHORTY OPTION: I recommend the shorty option for lc200/lx570 if you are 2-3” of lift height. Anything higher you want the standard height and run the top hole. If you’re unsure about if you are going to possibly raise the height later. Then get the standard and run the bottom hole. When you raise it later , then you have the extra mounting hole.

Gold and King blue option are 2/3 stage powdercoat. You may experience tight mounting holes do to clear coat. Don’t worry. Get a round file and file it down a little or smash it in. I recommend round file 😆!

Biggest tire you can run with the oem trac bar is 34.7 as anything bigger will slightly rub the trac bar / pan hard bar!

Whats included :

- main front bracket -back bracket - (1x)m14 x 1.5 x 80mm flange head bolt - (1x) m14 x1.5 x 40mm flange head bolt - (1x) m14x1.5 flange nut - (2x m10x 1.25x 25)

20% restocking fee (no exceptions ) know what you are buying

Important : gold may or may not come out exactly the same as in pictures Sometimes it’s orange gold sometimes it yellow gold It’s the hardest color to powder coat as it get a chrome base with 2 stages of clear / candy gold. The front main bracket is the only one colored if you choose color options . The rest of the parts are matte black !

“Important shipping / insurance info: if you don’t choose more insurance to cover the cost of whatever you are buying and it is lost or damaged to the point where a claim is being made I will only cover $100 worth as that is the amount they only cover! You have been warned “

ATTENTION Canadian customers !! If you chose UPS as your shipping option , there are times where UPS will impose an import fee! I don’t know how they determine the cost but some customers are stating $100-$120 US dollars which is ridiculous! I have no control over it once it leaves me and enters Canada I think it’s a government fee they are charging UPS in which some one has to pay ! You have been warned There’s always DHL option and USPS

ABSOLUTELY NO RETURNS OR EXCHANGE IF PRODUCT HAS BEEN INSTALLed AND OR HAS SCUFF MARKS FROM INSTALL

[{"id":43945143894243,"title":"Matte Black","option1":"Matte Black","option2":null,"option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"B.O.T.C.K - Bolt On TrackBar Correction kit Land Cruiser 200 series\/ LX 570 - Matte Black","public_title":"Matte Black","options":["Matte Black"],"price":21500,"weight":2860,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":44640103399651,"title":"Matte Black (Shorty)","option1":"Matte Black (Shorty)","option2":null,"option3":null,"sku":"","requires_shipping":true,"taxable":true,"featured_image":{"id":43387974123747,"product_id":8132556161251,"position":1,"created_at":"2024-11-23T17:51:03-08:00","updated_at":"2024-11-23T17:51:05-08:00","alt":null,"width":5712,"height":4284,"src":"\/\/drkdss.com\/cdn\/shop\/files\/BF8C8140-2919-4512-9F3A-27E034CC988D.jpg?v=1732413065","variant_ids":[44640103399651]},"available":true,"name":"B.O.T.C.K - Bolt On TrackBar Correction kit Land Cruiser 200 series\/ LX 570 - Matte Black (Shorty)","public_title":"Matte Black (Shorty)","options":["Matte Black (Shorty)"],"price":21500,"weight":2860,"compare_at_price":null,"inventory_management":"shopify","barcode":"","featured_media":{"alt":null,"id":35558117900515,"position":1,"preview_image":{"aspect_ratio":1.333,"height":4284,"width":5712,"src":"\/\/drkdss.com\/cdn\/shop\/files\/BF8C8140-2919-4512-9F3A-27E034CC988D.jpg?v=1732413065"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":43945143927011,"title":"Silver","option1":"Silver","option2":null,"option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"B.O.T.C.K - Bolt On TrackBar Correction kit Land Cruiser 200 series\/ LX 570 - Silver","public_title":"Silver","options":["Silver"],"price":21500,"weight":2859,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":43945143959779,"title":"Red","option1":"Red","option2":null,"option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"B.O.T.C.K - Bolt On TrackBar Correction kit Land Cruiser 200 series\/ LX 570 - Red","public_title":"Red","options":["Red"],"price":21500,"weight":2859,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":44640106414307,"title":"Red (Shorty)","option1":"Red (Shorty)","option2":null,"option3":null,"sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"B.O.T.C.K - Bolt On TrackBar Correction kit Land Cruiser 200 series\/ LX 570 - Red (Shorty)","public_title":"Red (Shorty)","options":["Red (Shorty)"],"price":21500,"weight":2859,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":43945143992547,"title":"King “like” Blue","option1":"King “like” Blue","option2":null,"option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"B.O.T.C.K - Bolt On TrackBar Correction kit Land Cruiser 200 series\/ LX 570 - King “like” Blue","public_title":"King “like” Blue","options":["King “like” Blue"],"price":22000,"weight":2859,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":44640114540771,"title":"King \"like\" blue (Shorty)","option1":"King \"like\" blue (Shorty)","option2":null,"option3":null,"sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"B.O.T.C.K - Bolt On TrackBar Correction kit Land Cruiser 200 series\/ LX 570 - King \"like\" blue (Shorty)","public_title":"King \"like\" blue (Shorty)","options":["King \"like\" blue (Shorty)"],"price":22000,"weight":2859,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":43945144025315,"title":"Gold blemished ( 3 stage with clear “some are  more yellow some are more orangy gold)","option1":"Gold blemished ( 3 stage with clear “some are  more yellow some are more orangy gold)","option2":null,"option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"B.O.T.C.K - Bolt On TrackBar Correction kit Land Cruiser 200 series\/ LX 570 - Gold blemished ( 3 stage with clear “some are  more yellow some are more orangy gold)","public_title":"Gold blemished ( 3 stage with clear “some are  more yellow some are more orangy gold)","options":["Gold blemished ( 3 stage with clear “some are  more yellow some are more orangy gold)"],"price":18000,"weight":2859,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]}]

Effective upgrade

Surprisingly fast shipping. Good quality of the panhard bracket and hardware is obvious. Quick communication for instruction tips on install.

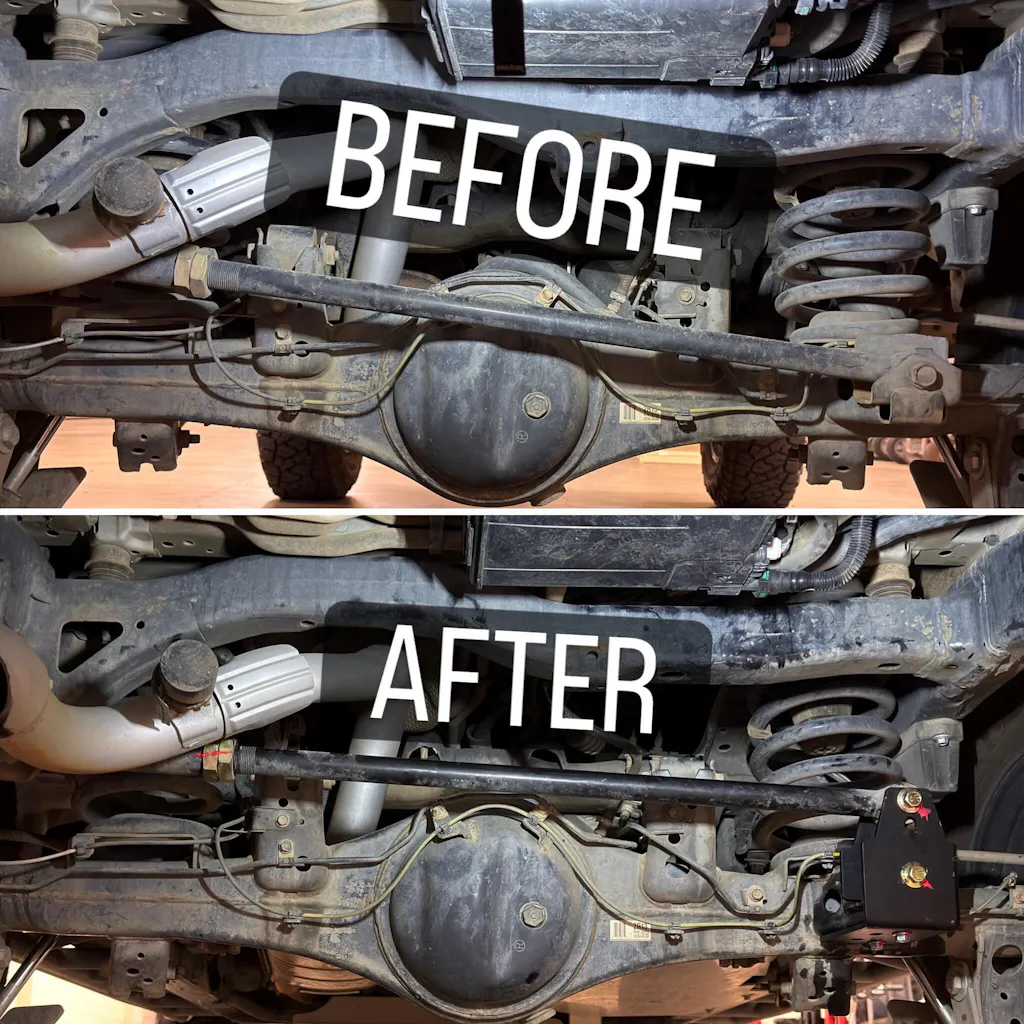

And even with my mild lift, a now parallel/flat panhard apparently makes a for a meaningful improvement in stability at higher speed…as well as handling at lower speed.

No more wiggles over dips

The main reason I bought this kit was that my 2-inch lifted Cruiser would wag its rear end when going over dips on the interstate. The wagging was very disconcerting, feeling like something in the rear end was loose. This kit stopped the wagging almost completely.

Excellent upgrade to my 2016 LX570 suspension

Got a inch lifted 2016 LX570 with 35 inch tires - the B.O.T.C.K kit really makes. A difference in the rear suspension geometry - it's as close as factory as possible. Build quality is very good and installation is easy

This made a big difference on my lifter 200. Highly recommended. Takes 30 mins to install and includes everything you need.

LC200 TRACK BAR CORRECTION KIT

SUPER EASY INSTALL. FIXED MY CRAB WALK ISSUE!!
