Panhard Bar Upgrade for Lifted 4Runners: Why It Matters
By Dom Ruangnol, Dr. KDSS
If you've lifted your 4Runner, you know the suspension geometry changes. One part that's often missed or left stock is the rear track bar, or Panhard bar as it's also called. I'm Dom, and as someone who machines and installs these parts, I want to walk you through why upgrading to a Dr. KDSS billet Track Bar is essential. It's designed specifically to recenter your rear axle, which gets pulled off-center by lift, restoring proper handling without any messy welds or fabrication. I'll keep it practical and straightforward.
What Is a Panhard Bar and Why Does It Matter on a Lifted 4Runner?
The Panhard bar is the lateral positioning link for your rear axle. On an unmodified vehicle, it keeps the axle centered under the vehicle. When you add a lift, the geometry changes. The axle moves sideways relative to the frame since the bar's fixed length can't compensate. This throws off alignment, causing uneven tire wear, poor handling, and can feel sloppy on the road.
Upgrading with Dr. KDSS's billet Track Bar (our Bolt-On TrackBar Correction Kit, the B.O.T.C.K.) addresses this by allowing you to recenter and adjust the axle position. It restores suspension geometry to near-stock conditions but with the lift height factored in, so your 4Runner handles like it should.
How the Track Bar Controls Lateral Axle Movement
The Track Bar mounts from the axle to the frame and stops your axle from moving side to side. With lift, that sideways movement is exaggerated because the original track bar length and mounting points keep the axle offset. Dr. KDSS's solution is made from machined 7075 billet aluminum for strength and precision. It bolts on straight out of the box with no welding, cutting, or drilling. The adjustable design lets you dial in the perfect length to recentralize the axle and maintain consistent tire contact with the trail or pavement.
Lifted 4Runner Suspension Challenges That Show Why You Need This Upgrade
Lifting your 4Runner changes the angles on everything, not just the springs and shocks. With KDSS-equipped models, the hydraulic sway bar and suspension links also get affected. A stock track bar often can't compensate, so the axle sits off to one side, leading to excessive wear and a feeling of instability.
Drivers report issues like:
- Pulling to one side on the road
- Uneven rear tire wear
- Loose or vague rear steering feel
- Increased stress on suspension parts
Installing Dr. KDSS's billet Track Bar corrects these because it's specifically engineered for the lifted setup, restoring proper axle position and improving your 4Runner's dynamics.
Why I Recommend the Dr. KDSS Billet Track Bar (B.O.T.C.K.) for Lifted 4Runners
The Dr. KDSS Track Bar and B.O.T.C.K. kit are the genuine upgrades I stand behind. Having machined and installed these myself, I can tell you they deliver the fit and function you need without compromise:
- Precision Fit and Adjustability: Made from durable 7075 billet, this track bar bolts on using factory mounts, saving you time and preserving factory geometry integrity.
- Re-centers the Axle Accurately: Adjustable length lets you center your axle no matter the lift height, improving handling and reducing tire wear.
- True Bolt-On Installation: No welding, cutting, or drilling needed. Just replace your stock bar and adjust.
This isn't aftermarket guesswork. It's a practical, well-machined solution designed specifically for lifted 4Runners and compatible with KDSS suspensions.
Practical Improvements on- and Off-Road

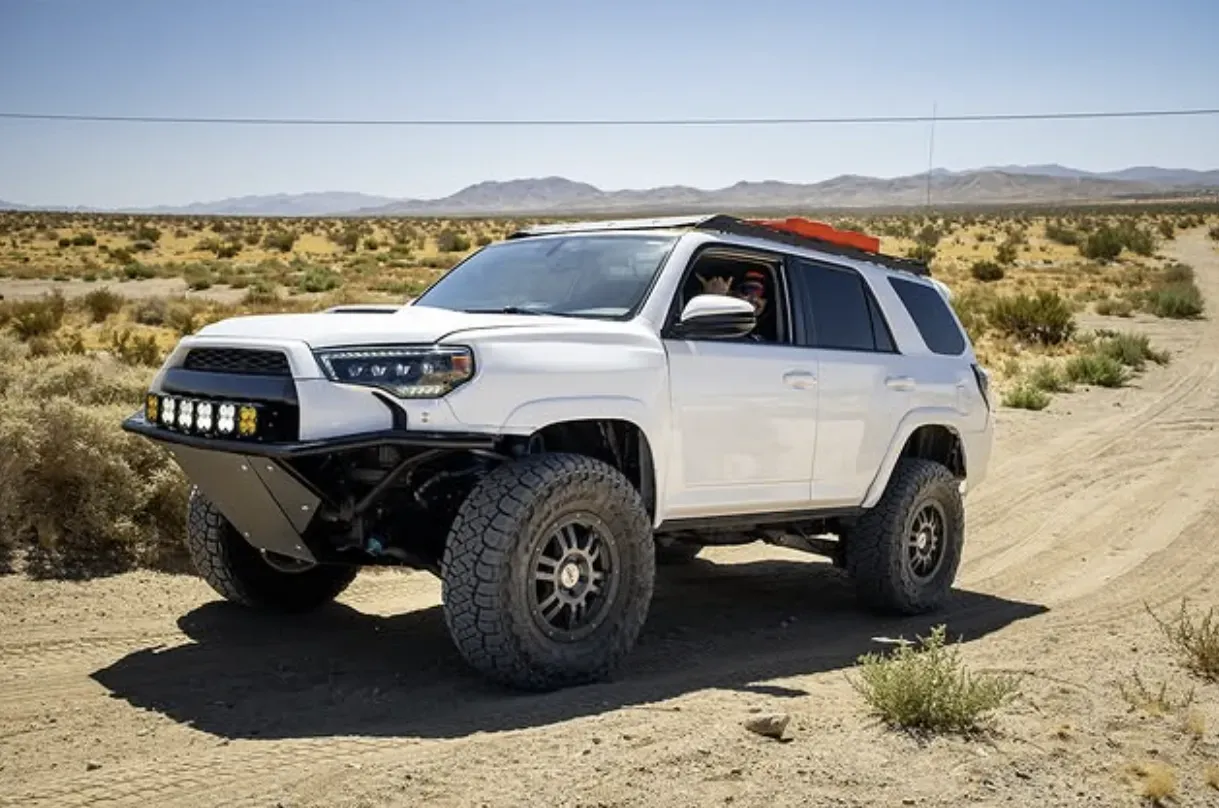

On-road, this upgrade reduces the pull and feels much more centered through turns. You get less irregular tire wear, and the rear end feels solid and responsive. Off-road, better axle centering means your articulation and traction improve because your tires stay properly aligned with the terrain. Less axle shift means your suspension articulates smoother over uneven ground, giving you confidence on rough trails.
Technical Benefits in Suspension Geometry Correction
By correcting lateral axle position, the track bar keeps your suspension operating within its design parameters, which reduces stress and prevents premature wear on joints and bushings. The adjustable bar also lets you fine-tune the setup for different lift heights or wheel/tire combos without cutting into the integrity of your suspension geometry.
Step-by-Step Panhard Bar Installation for Lifted 4Runners with KDSS
Here's a practical guide to swapping your stock bar for the Dr. KDSS adjustable billet Track Bar:
- Gather Your Tools: Wrenches, jack stands, and a measuring tool for alignment checks.
- Secure the Vehicle: Park on a level surface, and support the rear with jack stands.
- Remove the Stock Track Bar: Loosen and remove the bolts holding the existing bar. Save hardware if reusing.
- Install the Dr. KDSS Billet Track Bar: Bolt the new bar in place, initially leaving bolts loose to allow for length adjustment.
- Adjust Length: Measure to center the axle under the frame and adjust the bar length accordingly.
- Tighten Bolts: Once centered, torque all bolts to manufacturer specs.
- Get a Professional Alignment: It's a good idea to have an alignment shop verify your suspension geometry after installation.
Alignment Tips
- Make sure the axle is centered side to side using a measuring tape or alignment tool.
- Check all suspension components for wear or damage during installation.
- Recheck alignment after any extended driving, especially off-road.
Dr. KDSS Billet Track Bar Vs. Other Lateral Link Options
Some folks consider other lateral links or track bars, but here's why the Dr. KDSS billet Track Bar and B.O.T.C.K. are the right choice for lifted 4Runners:
- Purpose-Built for Lifted 4Runners and KDSS: Unlike generic parts, these fit perfectly and compensate correctly for lift height.
- Simple Install: True bolt-on means no drilling, cutting, or welding.
- High-Quality Materials: 7075 billet aluminum is lightweight, strong, and built for the stresses of off-road use.
This bar corrects the exact problem that lifts create: lateral axle displacement. It's what I use personally and recommend to anyone serious about maintaining stock-like handling with a lift.
Other Essential Suspension Upgrades to Pair With the Dr. KDSS Track Bar
While the track bar is the cornerstone, you can complement it with these upgrades to get the most out of your lift:
- High-Performance Shocks: Upgrading shocks matched to your 4Runner and lift setup improves ride quality and handling.
- Adjustable Control Arms: These allow fine-tuning of camber and caster angles to maintain ideal suspension geometry.
- Sway Bar Disconnects: For enhanced articulation and off-road flexibility, disconnects let you loosen up the front sway bar when the trail gets rough.
Working together, these components create a balanced, stable, and capable suspension that will make your 4Runner perform the way it should. For the full geometry correction, pair the bar with the complete B.O.T.C.K. correction kit.
How These Upgrades Improve Ride Quality and Off-Road Handling
With the Dr. KDSS billet Track Bar correcting axle position and matching adjustable parts complementing your setup, you'll notice a more composed ride. Your 4Runner will corner more predictably on pavement, and off-road articulation will improve without sacrificing control. Overall, these upgrades reduce the typical wandering and sloppy feelings heavy lifts often bring. They make your vehicle handle more like it did from the factory, just higher and tougher.
Where to Find Dr. KDSS Adjustable Panhard Bars and Dealer Support
All Dr. KDSS products including the billet Track Bar and B.O.T.C.K. are available through our website with direct factory support. We pride ourselves on offering well-engineered parts designed and built in-house, backed by knowledgeable staff who understand the ins and outs of KDSS and lifted 4Runner suspensions.
About the Dr. KDSS Adjustable Billet Track Bar
Our billet Track Bar is precision-machined from 7075 aluminum for maximum strength and durability, engineered to correct rear axle displacement caused by lifts without compromising factory suspension geometry or requiring modification to your vehicle. It suits various lift heights and works right with KDSS.
Connecting With Authorized Dealers and Installation Experts
You can find authorized Dr. KDSS dealers and installation partners by visiting our website. Our experts can guide you through selecting the right parts and support you with installation advice to ensure your upgrade goes smoothly. For personalized help, feel free to contact us directly.
Frequently Asked Questions
Do I really need a Panhard bar after lifting my 4Runner?
If your lift is more than mild, yes. The factory track bar has a fixed length, so once you raise the ride height it can no longer hold the rear axle centered under the frame. That off-center axle is what causes the pulling, uneven tire wear, and vague rear-end feel most people notice after a lift. An adjustable billet Track Bar lets you put the axle back where it belongs.
Will the Dr. KDSS billet Track Bar work with my KDSS-equipped 4Runner?
Yes. The Track Bar and the full B.O.T.C.K. kit are designed specifically with KDSS suspensions in mind. They correct the lateral axle position without binding the hydraulic sway bar system, so KDSS keeps doing its job on- and off-road.
Is the track bar a true bolt-on, or do I need to cut or weld?
It is a true bolt-on. You remove the stock bar, bolt the Dr. KDSS billet Track Bar into the factory mounts, adjust the length to center the axle, and torque it down. No cutting, drilling, or welding required. I do recommend a professional alignment afterward to lock in the corrected geometry.
Ready to Upgrade Your Lifted 4Runner's Suspension?
Don't settle for sloppy handling and uneven tire wear caused by a lifted rear axle. Shop the Dr. KDSS B.O.T.C.K. and billet Track Bar today to restore your 4Runner's proper axle position and get back confident, stable handling both on- and off-road.
