Lexus GX460 KDSS Suspension Fix: Complete Guide
By Dom Ruangnol, Dr. KDSS
I've spent a lot of time working on the Lexus GX460's KDSS (Kinetic Dynamic Suspension System). This system does a great job at balancing ride quality with off-road performance, but once you lift the truck, you run into some mounting challenges with the KDSS. My goal here is to share straightforward guidance on upgrading and troubleshooting the KDSS suspension after a lift. I'll walk you through key fixes, what needs attention after a lift, and how to keep the vehicle feeling right.
Understanding these modifications is about practical improvement, not hype. Whether you're a builder like me or just someone wanting reliable fixes, this guide breaks down the essentials, from selecting the right lift height to spotting typical suspension issues. The name of the game is keeping your GX460 performing the way it was meant to, even with modifications.
Upgrades
When you lift your Lexus GX460, some upgrades become mandatory to maintain good handling and avoid messing up the KDSS system.
Choose Your Lift Height
Picking a lift height isn't about going as high as possible, it’s about balance. For the GX460, 2 to 3 inches is a sweet spot that improves clearance without introducing handling compromises. You want to think about where you'll drive most and what kind of ride feel you prefer. Smaller lifts keep the center of gravity low, while bigger lifts help with aggressive off-roading but demand more corrections.
Plan KDSS Correction
This is where a lot of folks overlook the fundamentals. Lift your GX460 too much without addressing how the KDSS geometry changes, and you’ll start noticing unstable handling or odd sway bar behavior. Plan on realigning and adjusting anything that moves the suspension arms off their designed angles. Doing this right means your suspension keeps doing its job rather than working against itself.

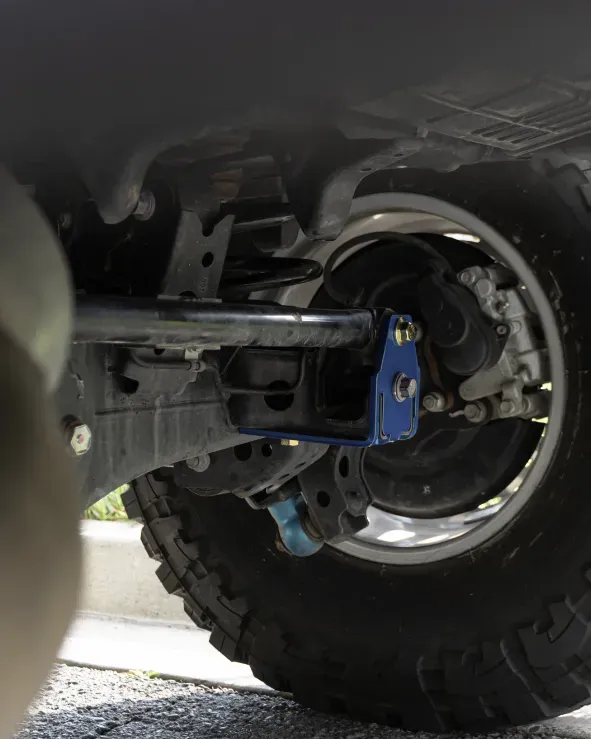

Install Upgraded Sway Bar Links
After a lift, the factory sway bar links rarely fit or perform optimally. Upgraded sway bar links with stronger materials and proper lengths reduce body roll and allow better axle articulation. Installing these links requires care, the wrong angle or fitment can cause premature wear or unpredictable handling. Upgraded links improve suspension consistency and driver confidence.

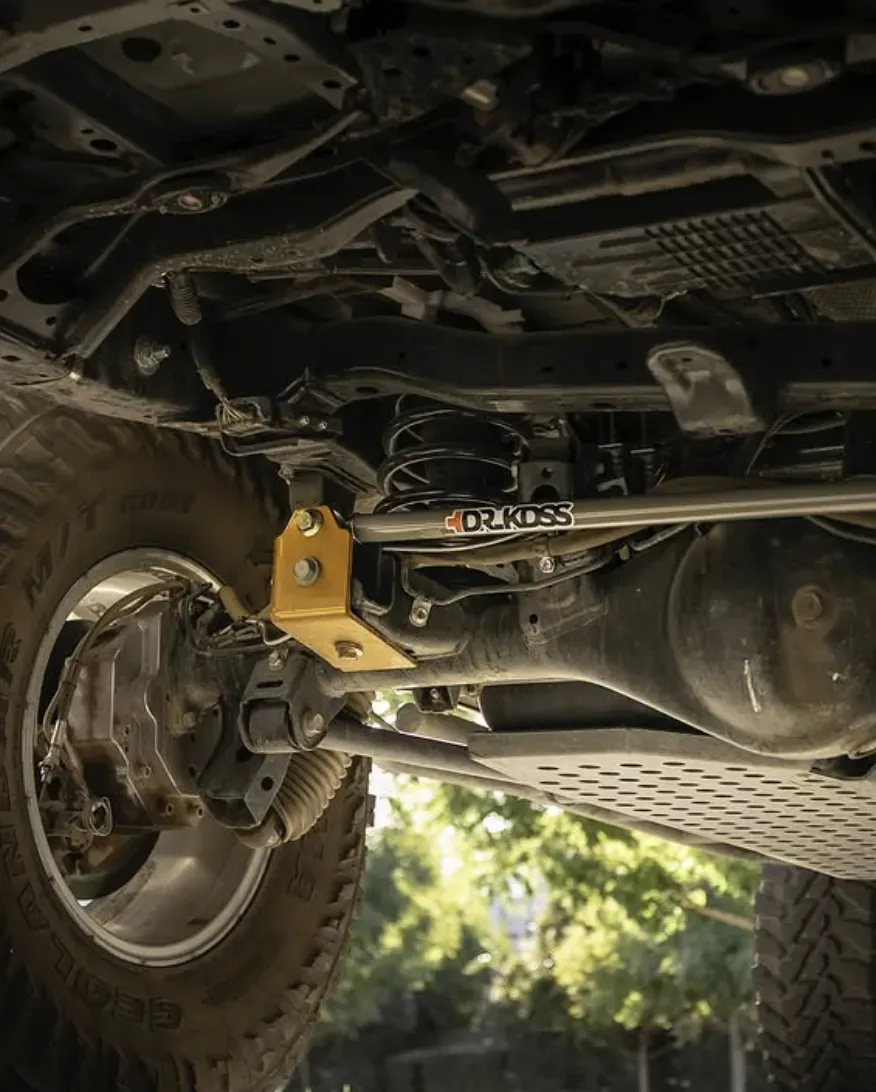

Install Track Bar Correction
Here’s where I get specific. The Dr. KDSS B.O.T.C.K. (Bolt On Trackbar Correction Kit) is the solution I recommend. It’s a precision-machined 7075 billet aluminum part that directly corrects the Panhard/track bar geometry after a lift. It bolts on, no drilling, welding, or cutting required. This kit not only realigns your rear axle correctly but also rebalances the KDSS preload, which is crucial for maintaining system function and stability. Using this track bar correction kit eliminates handling quirks, uneven tire wear, and steering pull commonly seen after lifting. You won’t find a more precise, builder-friendly fix out there for GX460 KDSS lifts than this.
Get a Proper Alignment
Never skip professional alignment after changing suspension geometry. An accurate alignment corrects tire angles and helps prevent premature wear or off-center steering. A proper alignment includes caster, camber, toe, and tracking. Neglecting this step will make all other upgrades pointless.
Troubleshooting Techniques
Once upgraded, it’s wise to stay alert for symptoms that suggest suspension or KDSS issues.
KDSS Warning Light
If your KDSS warning light comes on after a lift, it usually signals a system malfunction. This could be caused by hydraulic actuator wear, sensor issues, or wiring problems. I always recommend running a full diagnostic with the right tools to pinpoint the cause, not guesswork. Sometimes swapping actuators will help, but tracking down electrical faults is just as important.
Steering Pull to One Side
Feeling the vehicle pull left or right often points to improper alignment or worn suspension components. Confirm the track bar and sway bar links were installed correctly and check for bushing wear. Ensuring suspension parts are tight and functioning is key here. Addressing these helps maintain predictable steering control.
Premature Bushing Wear
Bushing wear can accelerate if parts aren’t fitting properly or if suspension angles are off following a lift. Keep an eye on these rubber or polyurethane components, they absorb a lot of stress. If they wear out early, inspect surrounding components and consider upgrading to more durable bushings along with proper geometry corrections.
Clunking from Front Suspension
Hearing clunks usually means loose bolts or worn parts in the front suspension. After lifting, double-check sway bar links and shock mounts for tightness and condition. Replacing worn components and tightening hardware can clear up noises and improve handling response.
Uneven Tire Wear
Uneven wear after modifications almost always means alignment or suspension geometry problems. Regular tire rotation and close monitoring help catch issues before they worsen. If uneven wear persists, revisit alignments and inspect suspension linkages for damage or misalignment.
Lift Compatibility Considerations
Not all lifts work well with KDSS-equipped GX460s. Your selection impacts handling, ride quality, and what additional corrections you’ll need. Here’s a quick overview:
| Lift Type | Description | Compatibility with KDSS | Effect on Ride Quality |
|---|---|---|---|
| Leveling Kit | Slight height increase to level vehicle stance | High, minimal adjustment needed | Improves ride comfort |
| Suspension Lift | Significant height increase for off-road clearance | Requires track bar correction | Enhances off-road performance |
| Body Lift | Raises vehicle body without altering suspension | No impact on KDSS | Can affect center of gravity |
If you’re serious about preserving the KDSS functionality and ride quality after lifting, plan to use the Dr. KDSS B.O.T.C.K. to keep everything in line.
Knowing the KDSS system’s design helps avoid common pitfalls during lift installations. Focus on correct lift height, a solid plan for geometry corrections, and relevant upgrades to keep your GX460 performing logically and reliably. Pay attention to troubleshooting and lift compatibility and you’ll get a suspension that feels confident on and off-road.
That said, the Dr. KDSS B.O.T.C.K. is the centerpiece of my recommendation, the no-compromise track bar fix for lifted GX460s with KDSS. It really puts your suspension back where it needs to be.
What is the Lexus GX460 KDSS System and How Does It Affect Suspension Performance?
KDSS stands for Kinetic Dynamic Suspension System, and it modulates the sway bars on your GX460 to maximize performance on varying terrain. Basically, it uses hydraulic actuators to disconnect or engage sway bars based on wheel articulation, improving cornering on pavement and maintaining wheel contact off-road. Maintaining and upgrading this system post-lift is critical since changes to suspension geometry affect its operation.
How the KDSS Hydraulic Suspension Controls Vehicle Stability
The KDSS hydraulics sense and adjust sway bar tightness to help keep the vehicle more stable during maneuvers. When suspension travel increases, the system allows for greater articulation by disconnecting bars, so the ride remains smooth even on uneven ground.
Common Hydraulic Cylinder Issues and Symptoms on Lexus GX460
Hydraulic cylinders can wear out or leak, causing symptoms like intermittent suspension responsiveness, fluid loss, and warning lights. Catching these early stops damage from spreading and keeps your suspension reliable.
What Causes KDSS Suspension Problems During Lexus GX460 Lift Kits Installation?
Installing lift kits changes suspension angles and lengths, which impacts KDSS hydraulic components functioning properly. Common causes of issues include misalignment, incorrect hydraulic cylinder position, and failure to address suspension geometry corrections.
How Lift Kits Affect KDSS Hydraulic Components and Sway Bar Disconnect
Lifts stretch or alter the position of hydraulic cylinders and disconnects, so you must either replace or adjust these parts accordingly. Ignoring this leads to improper sway bar engagement and unpredictable handling.
Identifying and Diagnosing KDSS System Lifting Problems on GX460
Diagnose problems by examining hydraulic cylinder operation, checking sway bar behavior in motion, and inspecting suspension geometry after lifts. These checks help isolate whether your issues stem from mechanical wear or setup problems.
How to Fix and Upgrade the Lexus GX460 KDSS Suspension After Lifting?
The best approach I’ve found involves recalibrating and correcting geometry using precise aftermarket parts like the Dr. KDSS B.O.T.C.K., replacing worn hydraulic components, and performing alignment checks. Upgrading parts during repairs improves driving stability and off-road capability.
Step-by-Step KDSS Hydraulic Cylinder Repair and Replacement Procedures
Replacing KDSS hydraulic cylinders is straightforward if you follow these steps:
- Raise the vehicle securely and support suspension components.
- Drain hydraulic fluid from the system to prevent spills.
- Disconnect hydraulic lines carefully, avoiding damage.
- Remove old cylinder using proper tools and note orientation.
- Install new cylinder, ensuring all seals and fittings are intact.
- Bleed the system to remove air and check for leaks.
- Test operation under load before driving.
These details keep your suspension tight, responsive, and leak-free.
Benefits of Dr. KDSS Upgrade Kits for Lifted Suspensions
The Dr. KDSS upgrade kits, including the B.O.T.C.K., optimize lifted GX460 suspensions by restoring geometry and KDSS preload without guesswork. They improve ride balance, reduce sway, and keep your steering predictable. The parts are designed specifically for this vehicle and system, which means you get reliable fit and function.
Which Off-Road Suspension Upgrade Kits Are Compatible with Lexus GX460 KDSS System?
I focus on parts engineered with KDSS in mind, like the Dr. KDSS track bar correction kit, because they maintain system integrity. After lift, you want components that complement KDSS operation, not interfere with it.
Comparing GX460 Suspension Upgrade Kits by Lift Height and KDSS Compatibility
When choosing suspension kits, consider how much lift you want and whether the kit either includes or is compatible with proper KDSS correction parts. My experience tells me it’s better to invest in the correct lift height with precise correction hardware than go big and compromise stability.
How Trackbar Correction Kits Improve Ride Quality and Alignment After Lift
The trackbar correction kit is foundational to correcting suspension geometry. It realigns the rear axle to the vehicle’s frame, restoring correct tracking and KDSS preload. This translates directly into better ride quality, less tire wear, and improved steering feel.
Common Lexus GX Suspension Troubleshooting Tips Post-Lift
After your lift, keep an eye on handling, noises, and warning indicators. Regularly check for leaks in hydraulic lines and inspect linkages. Early troubleshooting prevents small issues from becoming expensive fixes.
How to Detect and Resolve KDSS Hydraulic Cylinder Issues and Noises
Listen for clunks or inconsistent dampening, watch fluid levels, and run pressure tests to spot faulty cylinders. Replace any worn or leaking parts quickly to keep your suspension functioning correctly.
Preventative Measures for Maintaining KDSS Performance with Off-Road Modifications
Routine inspections, doing corrective upgrades like the Dr. KDSS B.O.T.C.K., and working methodically during installation make all the difference in keeping KDSS optimal.
Where to Find Support and Dealer Programs for Lexus GX460 KDSS Suspension Solutions?
For professional support, I recommend contacting specialized shops familiar with Lexus or Toyota suspensions that carry Dr. KDSS products. These dealers often provide expert installation and ongoing support.
How to Become a Reseller or Dealer of Dr. KDSS Suspension Products
If you're interested in selling Dr. KDSS products, contact the company directly to discuss dealership opportunities, inventory, and support.
Accessing Expert Installation Support and Customer Service for KDSS Suspension Fixes
Dr. KDSS offers installation guidance through its customer service and works with certified professionals. Don’t hesitate to reach out early in your build for advice.
Frequently Asked Questions
- Q: Do I really need the track bar correction kit after lifting my GX460 with KDSS?
- A: Yes, in my experience, the track bar correction kit is crucial. Without it, the rear axle geometry shifts, causing uneven tire wear and steering issues. The Dr. KDSS B.O.T.C.K. restores these angles and helps maintain the correct KDSS preload. It’s a bolt-on fix that makes a big difference.
- Q: What should I do if the KDSS warning light comes on after installing a lift kit?
- A: The warning light usually means the system detected a fault. I recommend running a full diagnostic to check the hydraulic actuators and wiring. Sometimes components need replacing, but you want to confirm the source before swapping parts blindly.
- Q: How high can I lift my GX460 without causing major KDSS problems?
- A: I generally advise staying within 2 to 3 inches of lift. Beyond that, you must make detailed corrections to the suspension geometry, including the track bar and sway bar links. Going higher without addressing KDSS geometry risks unstable handling.
- Q: Is the Dr. KDSS B.O.T.C.K. really a bolt-on install, or does it require extra fabrication?
- A: It’s truly bolt-on. No drilling, welding, or cutting required. The precision-machined aluminum part fits directly into the existing hardware points. This ease of install is one reason I recommend it as the go-to correction kit for lifted GX460s with KDSS.
